Air Tip

These air probe handheld sensors have an ergonomically designed handle for ease of use. The handle also contains an antimicrobial substance which kills microorganisms, making it ideal for the food industry or applications where cleanliness is paramount.

The solid handle and cable have also been tested for torque and tensile strength. The curly polyurethane cable is 2 metres long (extended) with a moulded on connector in IEC, ANSI or JIS colours.

The handle has been tested to IP67, which means it is totally protected against dust ingress and protected against short periods of immersion in water.

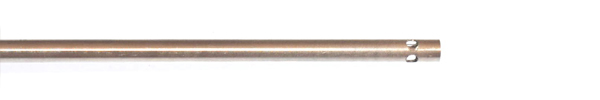

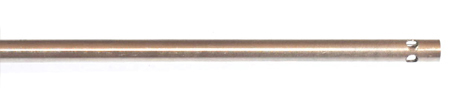

Sensor Tip

Air Tip Air Tip

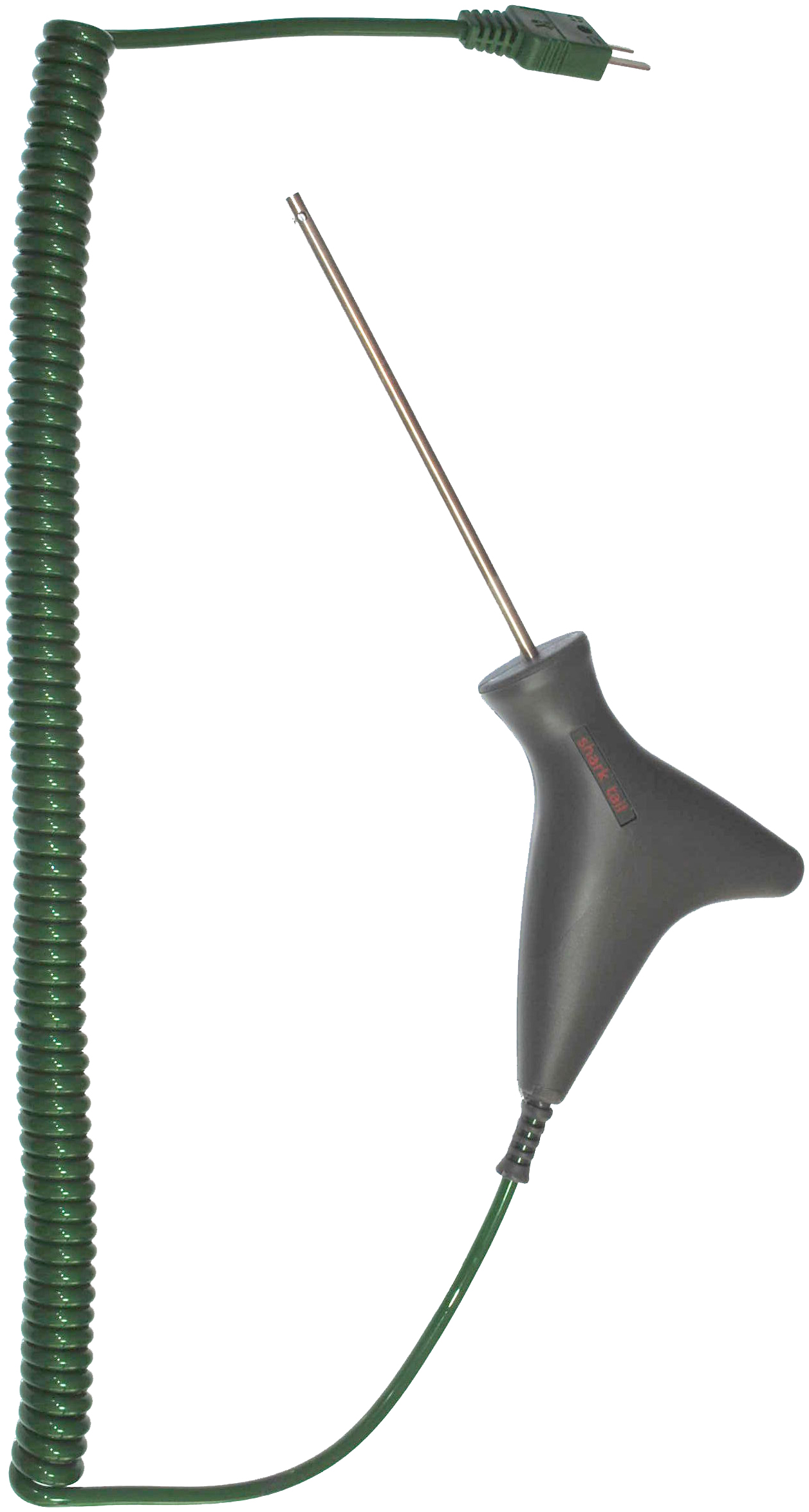

Complete Sensor

Air Tip

Key Features

  • IP67 rated
  • Tensile Strength tested
  • Antimicrobial handle
  • Ergonomically designed



Specifications

Probe Length 110mm
Probe Diameter 4mm
Cable Length 2 metres (extended)
Cable Termination K or T Miniature plug (IEC 584, ANSI MC96.1 or JIS 1610)
PRT bare wires (4 wires) (IEC 751)
Probe Temperature Range Type ‘K’ -50°C to +750°C
Type ‘T’ -50°C to +400°C
PRT -50°C to +450°C
Sensor Type Air tip, Type K, T or PRT
Construction Vented air tip, 316 stainless steel
Element/Hot Junction Vented sheath for general air temperature measurement
Cable 2 metre (extended) Polyurethane, colour coded in accordance with IEC, ANSI or JIS with moulded on miniature plug.

Downloads

Air Tip Data Sheet Download
Shark Tail Sensor Brochure Download
Torque & Tensile Certificate Download
IP67 Rating Certificate Download
Antimicrobial Datasheet Download

Ordering Information

Calibration
Type/
Colour		 Probe Diameter∅ (mm) Probe LengthL (mm) Lead Length (m) Lead Colour Order Code
K / IEC 4 110 2 Green XE-6540-001
T / IEC 4 110 2 Brown XE-6541-001
K / ANSI 4 110 2 Yellow XE-6580-001
T / ANSI 4 110 2 Blue XE-6581-001
K / JIS 4 110 2 Blue XE-6630-001
T / JIS 4 110 2 Brown XE-6631-001
PRT 4 110 2 Black XE-6607-001
