A family of rugged, hygienic, hand held temperature sensors for food, medical, light industrial and general purpose applications.
A family of rugged, hygienic, hand held temperature sensors for food, medical, light industrial and general purpose applications.
These needle tip handheld sensors have an ergonomically designed handle for ease of use. The handle also contains an antimicrobial substance which kills microorganisms, making it ideal for the food industry or applications where cleanliness is paramount.
The solid handle and cable have also been tested for torque and tensile strength. The curly polyurethane cable is 2 metres long (extended) with a moulded on connector in IEC, ANSI or JIS colours.
The handle has been tested to IP67, which means it is totally protected against dust ingress and protected against short periods of immersion in water.
Key Features
| Probe Length | 60, 120 or 300 mm |
|---|---|
| Probe Diameter | 1.6 or 3.3mm |
| Cable Length | 2 metres (extended) |
| Cable Termination | K or T Miniature plug (IEC 584, ANSI MC96.1 or JIS 1610) PRT bare wires (4 wires) (IEC 751) |
| Probe Temperature Range | Type ‘K’ -50°C to +260°C Type ‘T’ -50°C to +260°C PRT -50°C to +260°C |
| Sensor Type | Type K, T or PRT |

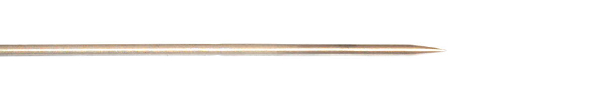

| Construction | Needle point tip, 316 stainless steel |
| Element/Hot Junction | Single element, grounded junction offering fast response |
| Cable | 2 metre Polyurethane (extended), colour coded in accordance with IEC, ANSI or JIS with moulded on miniature plug. |
| Needle Tip Data Sheet |  |
|
|---|---|---|
| Shark Tail Sensor Brochure | |
|
| Torque & Tensile Certificate | |
|
| IP67 Rating Certificate | |
|
| Antimicrobial Datasheet | |
|
| Calibration Type/ Colour |
Probe Diameter∅ (mm) | Probe LengthL (mm) | Lead Length (m) | Lead Colour | Order Code |
|---|---|---|---|---|---|
| K / IEC | 1.6 | 60 | 2 | Green | XE-6521-001 |
| T / IEC | 1.6 | 60 | 2 | Brown | XE-6522-001 |
| K / IEC | 3.3 | 120 | 2 | Green | XE-6523-001 |
| T / IEC | 3.3 | 120 | 2 | Brown | XE-6524-001 |
| K / IEC | 3.3 | 300 | 2 | Green | XE-6525-001 |
| T / IEC | 3.3 | 300 | 2 | Brown | XE-6526-001 |
| K / ANSI | 1.6 | 60 | 2 | Yellow | XE-6568-001 |
| T / ANSI | 1.6 | 60 | 2 | Blue | XE-6569-001 |
| K / ANSI | 3.3 | 120 | 2 | Yellow | XE-6570-001 |
| T / ANSI | 3.3 | 120 | 2 | Blue | XE-6571-001 |
| K / ANSI | 3.3 | 300 | 2 | Yellow | XE-6572-001 |
| T / ANSI | 3.3 | 300 | 2 | Blue | XE-6573-001 |
| K / JIS | 1.6 | 60 | 2 | Blue | XE-6618-001 |
| T / JIS | 1.6 | 60 | 2 | Brown | XE-6619-001 |
| K / JIS | 3.3 | 120 | 2 | Blue | XE-6620-001 |
| T / JIS | 3.3 | 120 | 2 | Brown | XE-6621-001 |
| K / JIS | 3.3 | 300 | 2 | Blue | XE-6622-001 |
| T / JIS | 3.3 | 300 | 2 | Brown | XE-6623-001 |
| PRT | 3.3 | 120 | 2 | Black | XE-6604-001 |
